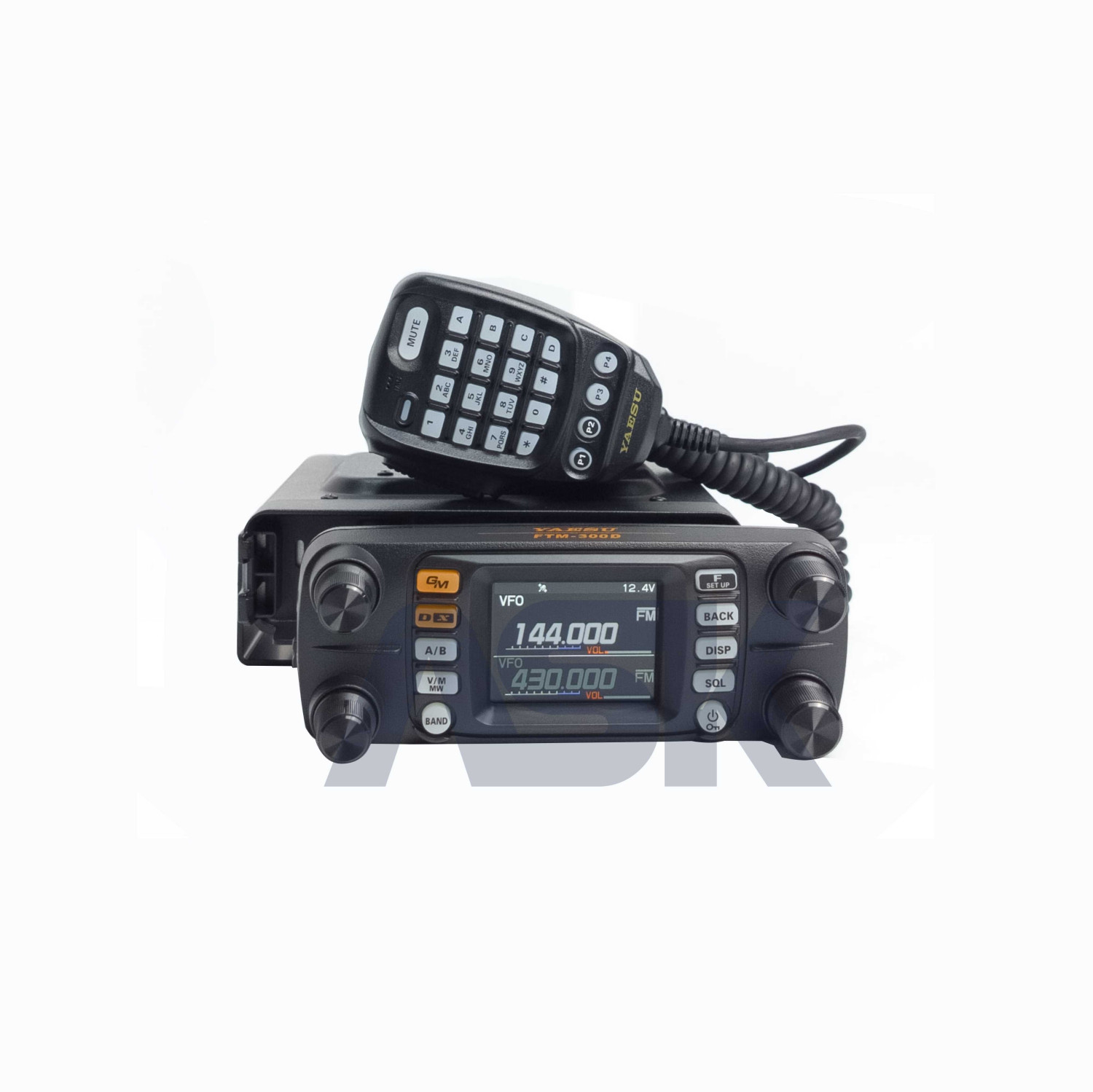

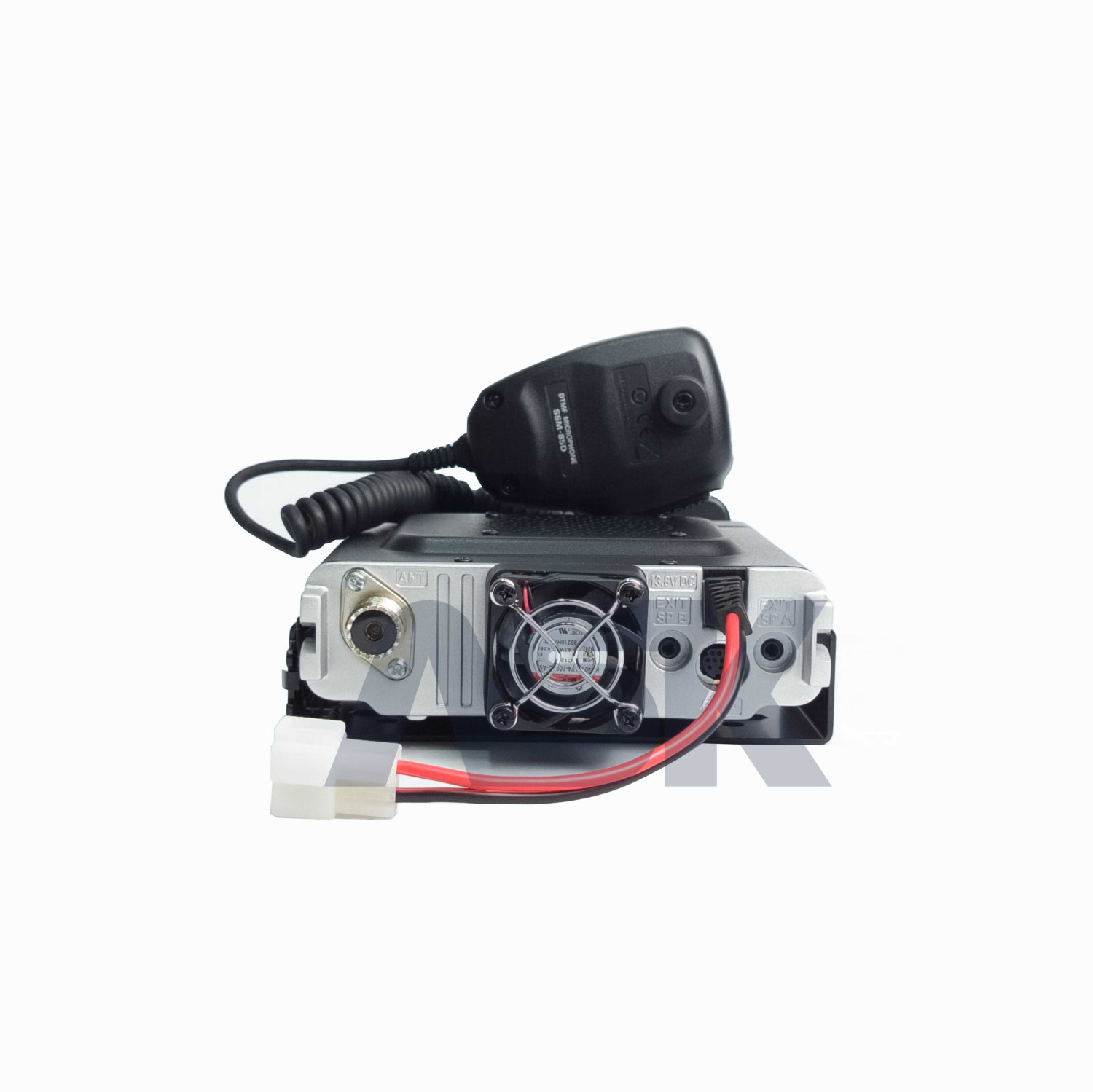

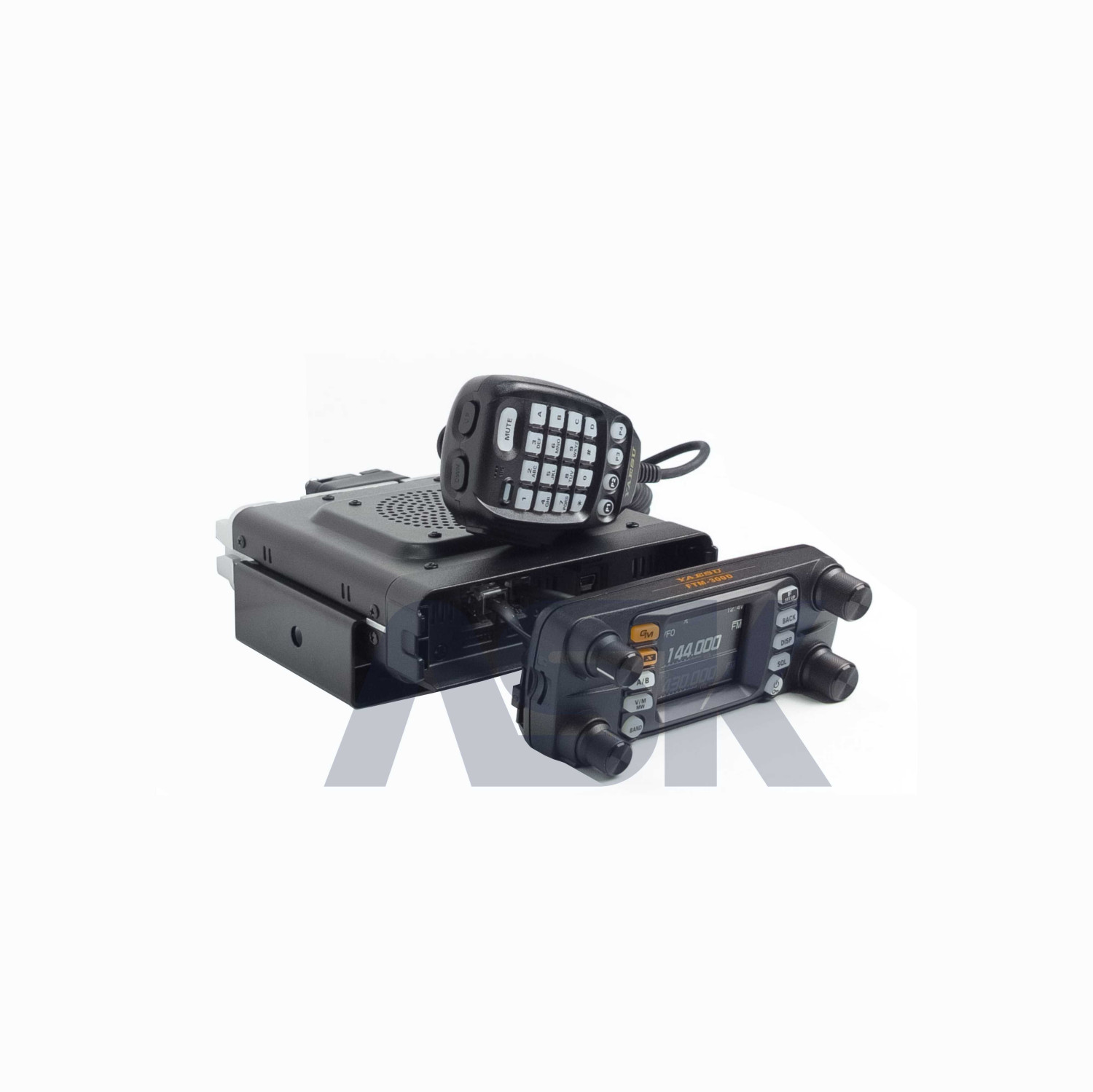

Radio Mobile FTM-300DR YAESU / Radio Mobile FTM 300DR
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
Rp6,750,000
/3
Share:
Top Selling Products
YAESU DEALER RESMI
Kami adalah Dealer Resmi Yaesu indonesia dan menjamin barang kami ASLI Yaesu.
Barang dijamin baru (bukan barang bekas atau rekondisi).
Bergaransi distributor.
Kalau barang tidak asli, uang akan kembali 100%.
Note : jangan sampai merusak segel, karena Garansi akan Void (tidak berlaku).
FTM-300DR adalah transceiver digital dual band 144/430MHz dengan daya output 50W dan sistem pendingin FACC untuk performa stabil. Mendukung operasi Real Dual Band (V+V, U+U, V+U, U+V) dengan penerimaan simultan C4FM di kedua band A dan B. Dilengkapi layar TFT QVGA 2 inci, Band Scope untuk memonitor hingga 63 kanal, speaker 3W untuk audio jernih, dan Bluetooth bawaan untuk operasi hands-free. Fitur lainnya mencakup GPS 66 saluran, APRS, perekaman suara, snapshot opsional, kompatibilitas WiRES-X, dan penyimpanan data di micro SD, menjadikannya ideal untuk komunikasi modern dengan fitur lengkap dan performa tinggi.
Kelengkapan
-FTM-300DR
- DTMF Microphone SSM-85D
- Radio unit Mounting Bracket
- Control Cable for the operation with mounting front panel
- Control Cable 10ft (3m) for the operation with demounting front panel
- USB Cable
- DC Power Cable
- Operating Manual
Spesifikasi:
- Frequency Range:
RX:
108 - 137 MHz (AIR Band)
137 - 174 MHz (144MHz HAM/VHF Band)
174 - 400 MHz (GEN)
400 - 480 MHz (430MHz HAM/UHF Band)
480 - 999.99 MHz (GEN)*¹
TX:
144 - 148 MHz atau 144 - 146 MHz (Bergantung pada versi transceiver)
430 - 450 MHz atau 430 - 440 MHz (Bergantung pada versi transceiver)
- Channel Steps: 5, 6.25, (8.33)*², 10, 12.5, 15, 20, 25, 50, 100 kHz
- Frequency Stability: ±2.5 ppm (-4°F to +140°F / -20°C to +60°C)
- Emission Type: F1D, F2D, F3E, F7W
- Supply Voltage: Nominal 13.8V DC, Negative Ground
- Current Consumption:
0.5A (Receive)
11A (50W TX, 144MHz)
11A (50W TX, 430MHz)
Operating Temperature: -4°F to +140°F (-20°C to +60°C)
- Case Size:
Radio Unit: 5.47"(W) x 1.66"(H) x 5.2"(D) (139 x 42 x 132 mm) tanpa kipas
Controller: 5.47"(W) x 2.09"(H) x 0.7"(D) (139 x 53 x 18 mm) tanpa tombol
- Weight (Approx.): 2.43 lbs (1.1 kg) termasuk Radio Unit, Controller, dan Kabel Kontrol
Transmitter
- RF Power Output: 50W / 25W / 5W
- Modulation Type:
F1D, F2D, F3E: Variable Reactance Modulation
F7W: 4FSK (C4FM)
- Maximum Deviation: ±5 kHz
- Spurious Emission: Minimal -60 dB
- Microphone Impedance: 2 kΩ
- Data Jack Impedance: 10 kΩ
Receiver
- Circuit Type: Double-Conversion Super Heterodyne
- Intermediate Frequencies:
1st: 58.05 MHz
2nd: 450 kHz (A band)
1st: 57.15 MHz
2nd: 450 kHz (B band)
- Sensitivity:
0.8 µV TYP for 10dB SN (108 - 137 MHz, AM)
0.2 µV for 12dB SINAD (137 - 140 MHz, FM)
0.2 µV for 12dB SINAD (140 - 150 MHz, FM)
0.25 µV for 12dB SINAD (150 - 174 MHz, FM)
0.3 µV TYP for 12dB SINAD (174 - 222 MHz, FM)
0.25 µV TYP for 12dB SINAD (222 - 300 MHz, FM)
0.8 µV TYP for 10dB SN (300 - 336 MHz, AM)
0.25 µV for 12dB SINAD (336 - 420 MHz, FM)
0.2 µV for 12dB SINAD (420 - 470 MHz, FM)
0.4 µV TYP for 12dB SINAD (470 - 520 MHz, FM)
0.8 µV TYP for 12dB SINAD (800 - 900 MHz, FM)
0.8 µV TYP for 12dB SINAD (900 - 999.99 MHz, FM)
- Cellular Blocked (USA Only)
- Selectivity: NFM, AM 12 kHz/30 kHz (-6 dB/-60 dB)
- AF Output:
3W (8Ω, THD10%, 13.8V) Internal Speaker
3W (8Ω, THD10%, 13.8V) External Speaker
- AF Output Impedance: 8Ω
There have been no reviews for this product yet.
