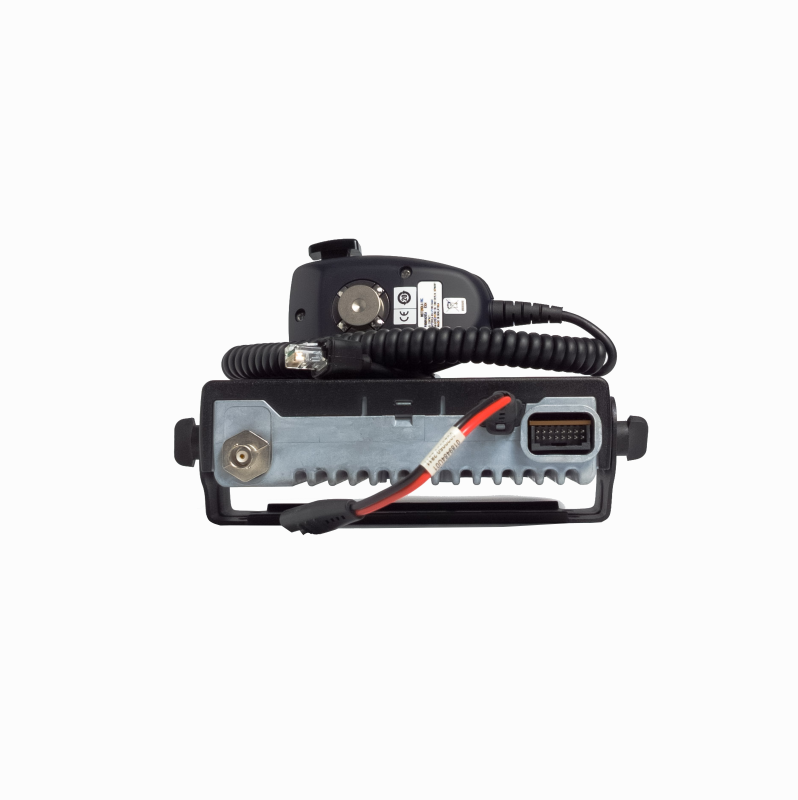

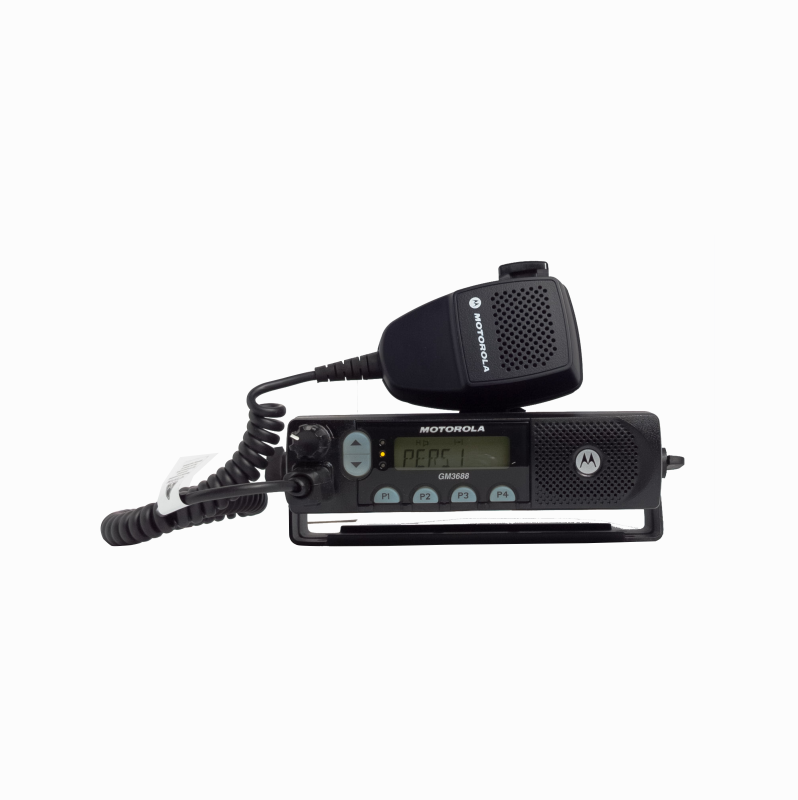

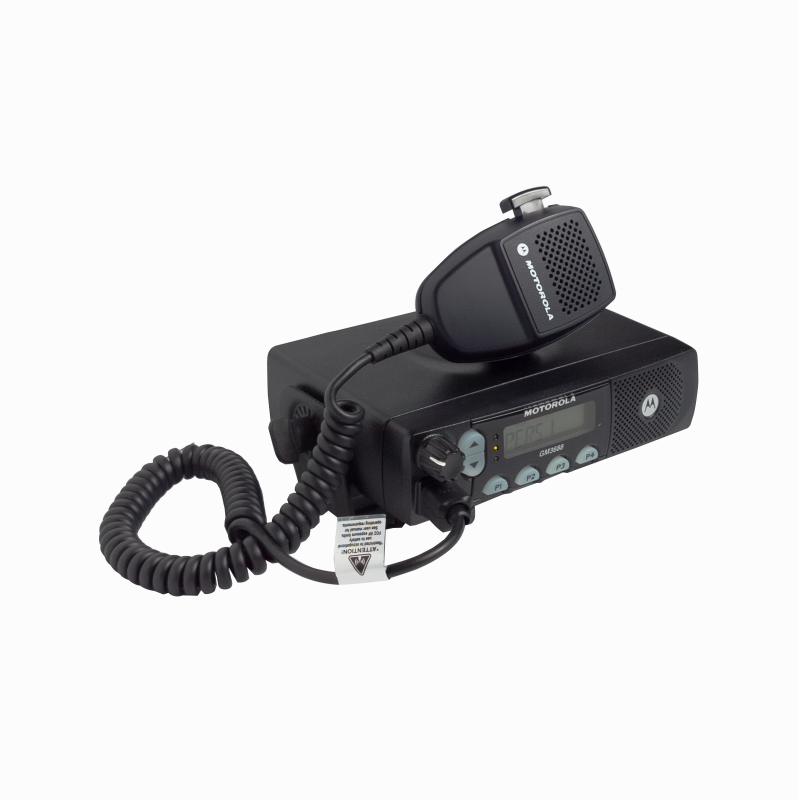

Radio Mobile GM3688 MOTOROLA / Radio Mobile GM 3688

MOTOROLA OUTLET RESMI
Kami adalah Master Dealer Motorola indonesia dan menjamin barang kami ASLI Motorola.
Barang dijamin baru (bukan barang bekas atau rekondisi).
Bergaransi Resmi Motorola indonesia selama 1 Tahun dan no seri terregister di Motorola indonesia.
Kalau barang tidak asli, uang akan kembali 100%.
Note : jangan sampai merusak segel, karena Garansi akan Void (tidak berlaku).

Bawalah Motorola GM3688 yang kokoh untuk menjelajahi dunia Konstruksi, Taksi, Kurir yang sulit
dan industri Manufaktur dan saksikan kinerjanya. Kualitas audio yang luar biasa membuat komunikasi menjadi mudah bahkan di lingkungan dengan kebisingan tinggi

ADDITIONAL FEATURES
- Programmable Channel Spacing
- Busy Channel Lockout
- External Alarm
- Public Address Mode
- Repeater / Talkaround
- Dual Priority Scan
- Nuisance Channel Delete
- Tight / Normal Squelch
- Time Out Timer

Kelengkapan:
- Radio GM3688
- Microphone
- Kabel DC/Power
- Mounting Bracket
- Manual book

SPECIFICATIONS
Frequency
VHF UHF

136-162MHz 350-380MHz 403-440MHz 438-470MHz
146-174MHz 465-495MHz 490-527MHz
Power Output: 1-25W (variasi tergantung frekuensi)
25-45W untuk frekuensi tertentu
Channel Capacity: 64
Power Supply: 13.8 Vdc (11 Vdc - 16.6 Vdc) negative vehicle ground
Channel Spacing: 12.5/20/25KHz
Frequency Stability: ( -30°C, + 60°C, +25°C Ref) +/-2.5ppm
Dimensions: ( H * W * L ) 44mm x 169mm x 118mm
Operating temperature: - 30 to + 60°C
Sealing: Passes rain and dust testing to IP54
Shock and Vibration: Meets MIL-STD 810-C,D&E and TIA/EIA 603

TRANSMITTER
Modulation Limiting:

VHF: ±2.5 KHz (12.5 KHz), ±4 KHz (20 KHz), ±5 KHz (25 KHz)
UHF: -

FM Hum & Noise:
VHF:-40 dB (12.5 KHz), -45 dB (25 KHz)
UHF:-35 dB (12.5 KHz), -40 dB (25 KHz)
Conducted / Radiated Power:
1-25W: 36 dBm < 1 GHz, -30 dBm > 1 GHz
25-40/45W: -26 dBm
Adjacent Channel Power:
-60 dB (12.5 KHz)
-70 dB (25 KHz)
Audio Response (300 to 3000 Hz): +1, -3 dB
Audio Distortion:
At 1000 Hz and 60% rated max deviation: 3% (typical)

Receiver
Intermodulation:
- VHF: 65 dB (12.5 KHz), 75 dB (25 KHz).
- UHF: 60 dB (12.5 KHz), 70 dB (25 KHz).
Adjacent Channel Selectivity:
- VHF: 65 dB (12.5 KHz), 75 dB (25 KHz).
- UHF: 60 dB (12.5 KHz), 70 dB (25 KHz).
Spurious Rejection:
- VHF: 75 dB, UHF: 70 dB.
Rated Audio Output:
- 4W (internal), 13W (external with a 4-ohm speaker).
Audio Performance:
- Distortion (@Rated Audio): 3% (typical).
Hum and Noise:
- VHF: -40 dB (12.5 KHz), -45 dB (25 KHz).
- UHF: -35 dB (12.5 KHz), -40 dB (25 KHz).
Response (300-3000 Hz): +1, -3 dB.
Conducted Spurious Emission:
- 57 dBm (<1 GHz), -47 dBm (>1 GHz).
